Product description
The RB10-2404M-PSE is a L3 Ethernet network managed switch, supporting IPV4/IPV6 management, dynamic routing at full line-speed forwarding, with thorough security features, including strong ACL/QoS policies and easy and comprehensive management features. Switch supports multiple network redundancy protocols: STP/RSTP/MSTP (<50ms) and ERPS ring (convergence time<20ms, improving link backup and network reliability. The RB10 managed series have high reliability and strong management features, making the product series suitable for multiple industries such as transportation, power or telecommunications.

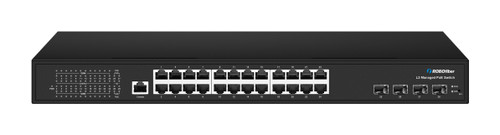

The RB10-2404M-PSE has 24 RJ45 Gigabit Ethernet 10/100/1000Base-Tx ports with PoE++ functions & 4x 1G/10GBase-X SFP+ slots for fiber uplink connectivity. The Layer 3 managed switch is has a 19" 1RU height metal format ideal for security commercial applications.
The RB10-2404M-PSE is easy to install and offering powerful functions such as VLAN, QoS or PoE PD device reset options. Ports #1 and #2 support IEEE802.3bt standard being able to deliver up to 90W of PoE power each. Remaining ports #3 to #24 can deliver up to 30W per port, being IEEE802.3af/at compatible. The total PoE budget available is 400W. Switch also offers 4kV surge protection on all TP ports. The switch eliminates the need for individual power sources for devices in the network, saving on costs for power cables and avoiding power outlet availability issues.
Fiber Optic Connectivity

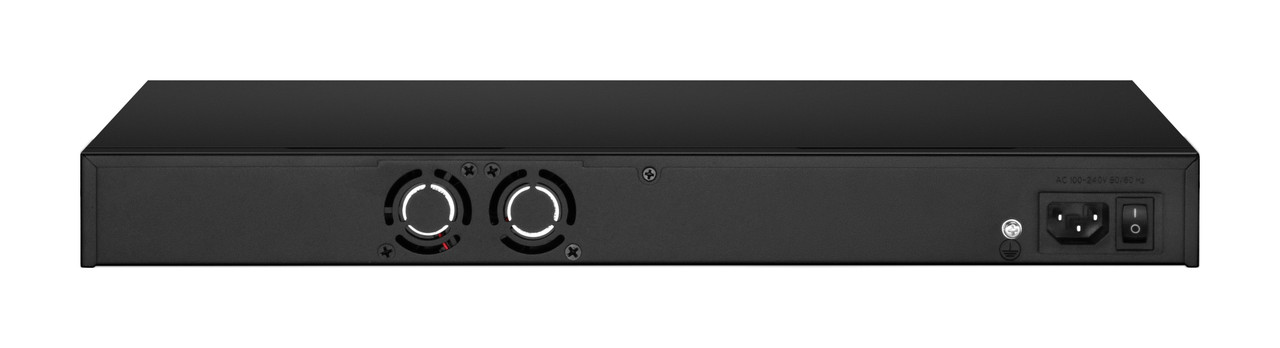

The RB10-2404M-PSE's design allows connectivity at 10G speed over fiber optic networks thanks to the four additional SFP+ slots running 1G/10GBase-X SFPs. Switch AC power is provided through a common AC 3-wire C13 power cord.
Technical Specifications
|
RB10-2404M-PSE |
|
|
Fixed Port |
24x10/100/1000M RJ45 port (data/power) 4x100/1000M/2.5G/10G SFP+ |
|
PoE Ports |
1-2 port supports IEEE802.3af/at/poe++/bt, max 90W/port PoE out 3-24 port supports IEEE802.3af/at, max 30W/port, PoE out |
|
Console port |
1xconsole port |
|
Reset Key |
1 |
|
PoE Pin |
af/at/bt: 12+ 45+; 36- 78- af/at: 12+ 36- |
|
PoE Bridge |
max 400W PoE PD budget |
|
CPU |
MIPS-34Kc 800GHz |
|
DDR |
4G DDR3 |
|
FLASH |
512MBytes |
|
RAM |
512MBytes |
|
Bandwidth |
512Gbps |
|
Packet Forwarding |
95.23Mpps |
|
MAC |
16K |
|
Buffer |
12Mbit SRAM Packet Buffer |
|
Jumbo Frame |
Jumbo frame up to 12KB |
|
VLAN Address |
4K |
|
Link Aggregation |
Supports 128 trunk groups with up to 8 members per group |
|
L3 Routing |
IPV4 supports 6K; IPV6 supports 2K; |
|
QoS Queue |
8 |
|
Transmission Distance |
10BASE-T: Cat3,4,5 UTP (≤250 meters) 100BASE-TX: Cat5 or later UTP (150 meters) 1000BASE-TX: Cat6 or later UTP (150 meters) SFP: 100M/1G/10G single-mode multi-mode optical module, the maximum distance is ≤120km (depending on the optical module) |
|
LED Indicator |
PWR: Power LED SYS: System LED 1-24: 10/100/1000M Network connection indicator 25-28: 10G SFP connection indicator |
|
Power |
Built-in power AC: 100-240Vac 50-60Hz 5A, max 415W |
|
Operating Temperature/Humidity |
-10 ~ +55°C; 5% ~ 90% RH Non condensation |
|
Storage Temperature/Humidity |
-40 ~ +75°C; 5% ~ 95% RH Non condensation |
|
Product / Packing Size (LxWxH) |
440mmx290mmx45mm 515mmx375mmx95mm |
|
N.W/G.W (kg) |
3.5kg/4.2kg |
Additional information on RB10-2404M-PSE switch:
PDF Datasheet and PDF User Guide
