Product Description
The ROBOfiber RB-4K60-MINI is an set made of Transmitter and Receiver for extending HDMI 2.0 (Ultra HD) 4K signal over fiber optic. The HDMI optical extender supports 4K resolution high-definition HDMI @ 60Hz, using a 10G data rate HDMI signal conversion chip. The optical port is embedded, single LC/UPC connector with a self shutting dust cap. The RB-4K60-MINI set supports HDMI 2.0 4K@60Hz video signal transmissions, can pass the EDID, supports HDCP, supports resolution of up to 720p@60Hz, 1080i@60Hz, 1080p@60Hz, 1080p@120Hz, supports 7.1 channel PCM surround sound and audio compression and is compatible with DVI signal transmission and hot plug HDMI interface.

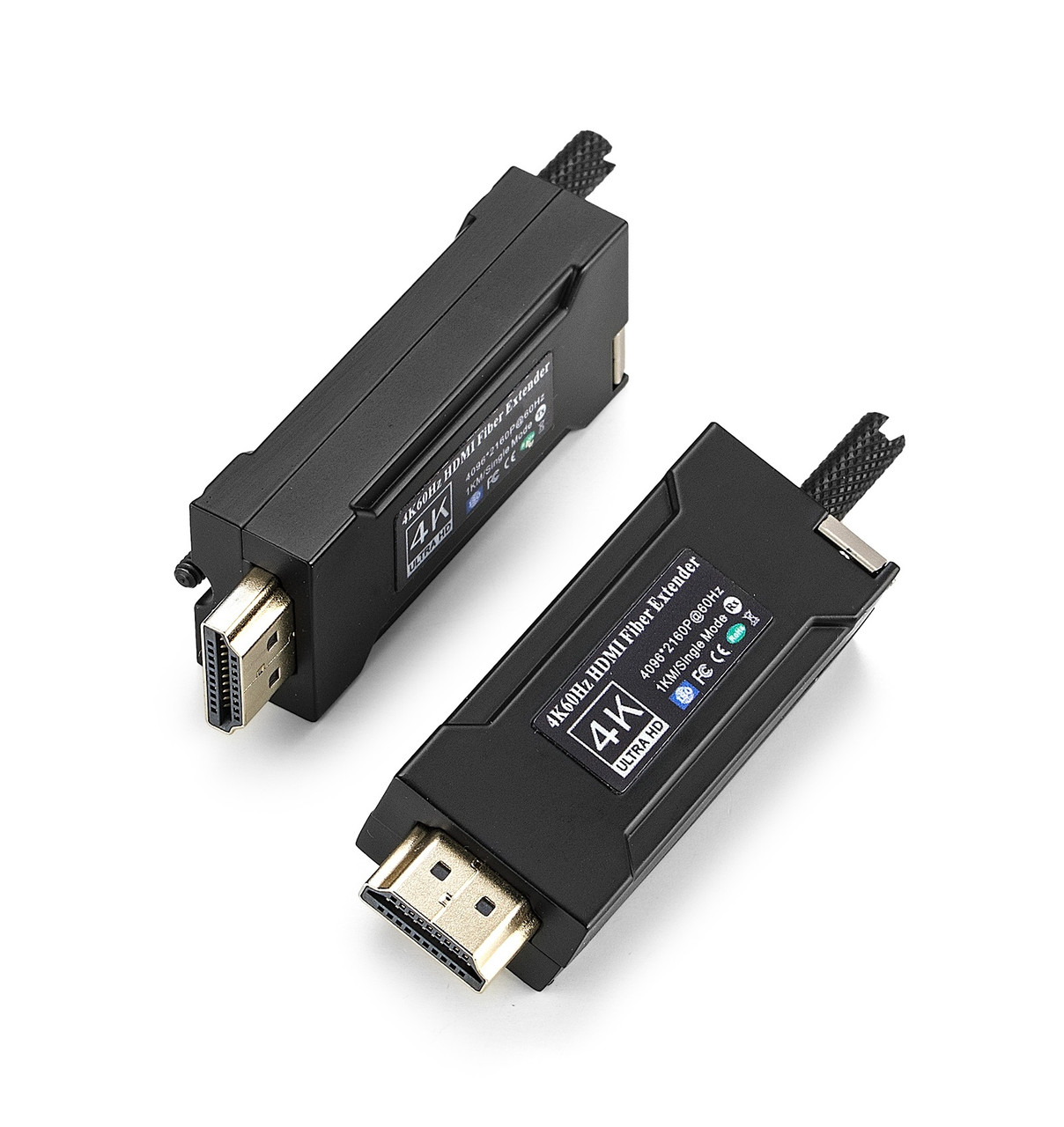

RB-4K60-MINI set is intended to be installed directly into the HDMI connector, physical size being minimal. A single strand of fiber, either SM type up to 10Km or MM type up to 300m reach can be used between transmitter and receiver.
Features
- Extends uncompressed multi-rate 4K HDMI video signals over fiber
- Supports HDMI 2.0 compliant signal
- 10G physical data rate over fiber
- Industrial temperature grade hardened units (-20 to +70 Celsius)
- Supports HDCP and EDID features
- Supports Single-Mode Fiber distance up to 10 km and Multi-Mode Fiber up to 300m over one strand of fiber only
- Built-in optics with single LC connector and self shutting dust cover protection
- High quality and resolution real-time video transmission
- LED status providing rapid reading of operational status
- No EMI or RFI and no ground loops
- Plug and Play design with no settings required
Additional information on RB-4K60-MINI fiber extender set (Transmitter and Receiver in same package):
PDF Datasheet, PDF User Manual.
